Ref.: C1002002
FLIESEN 4D

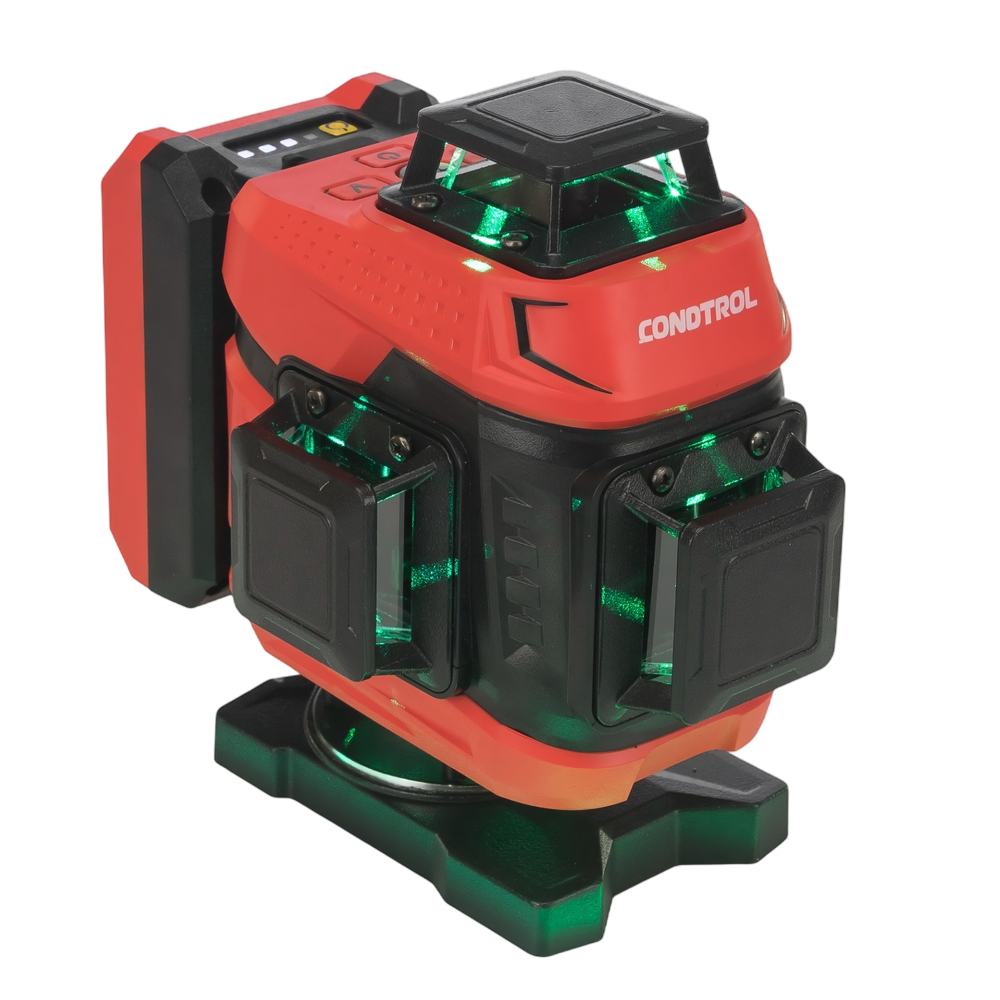

Green laser level
Green laser level
Features

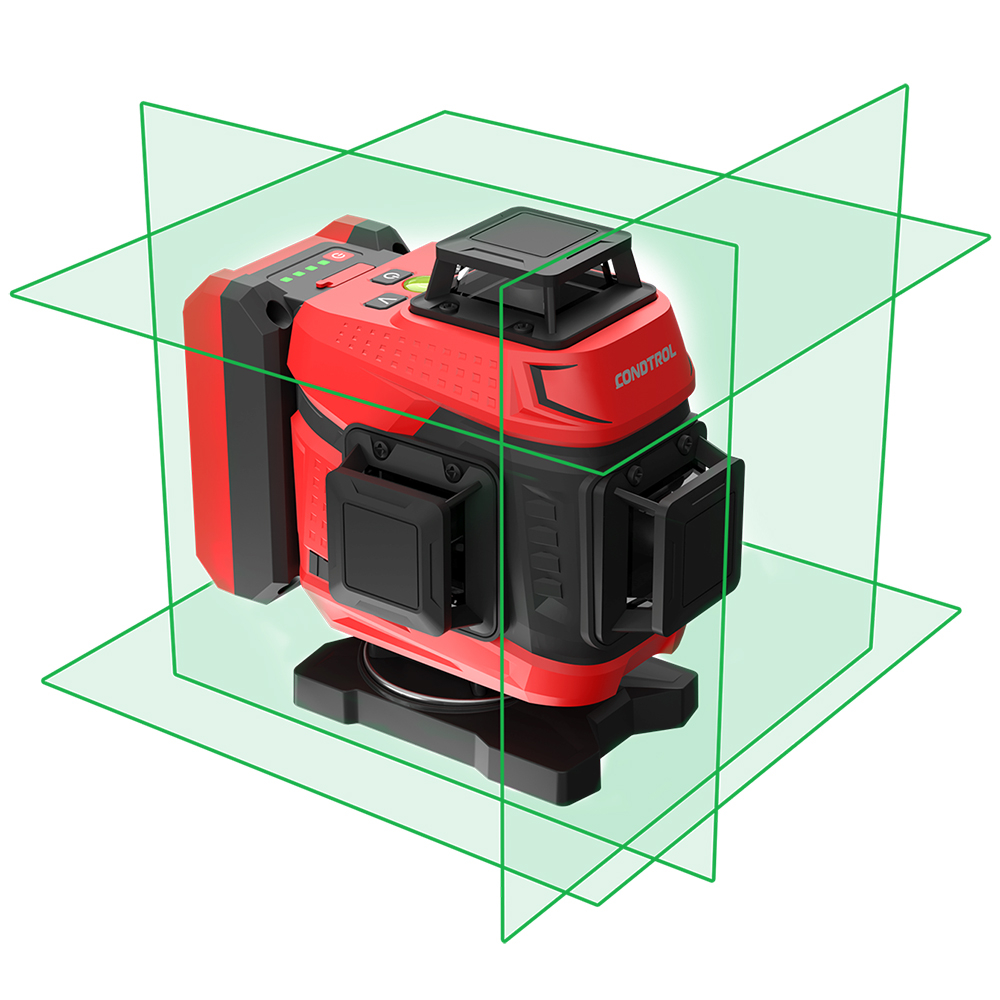

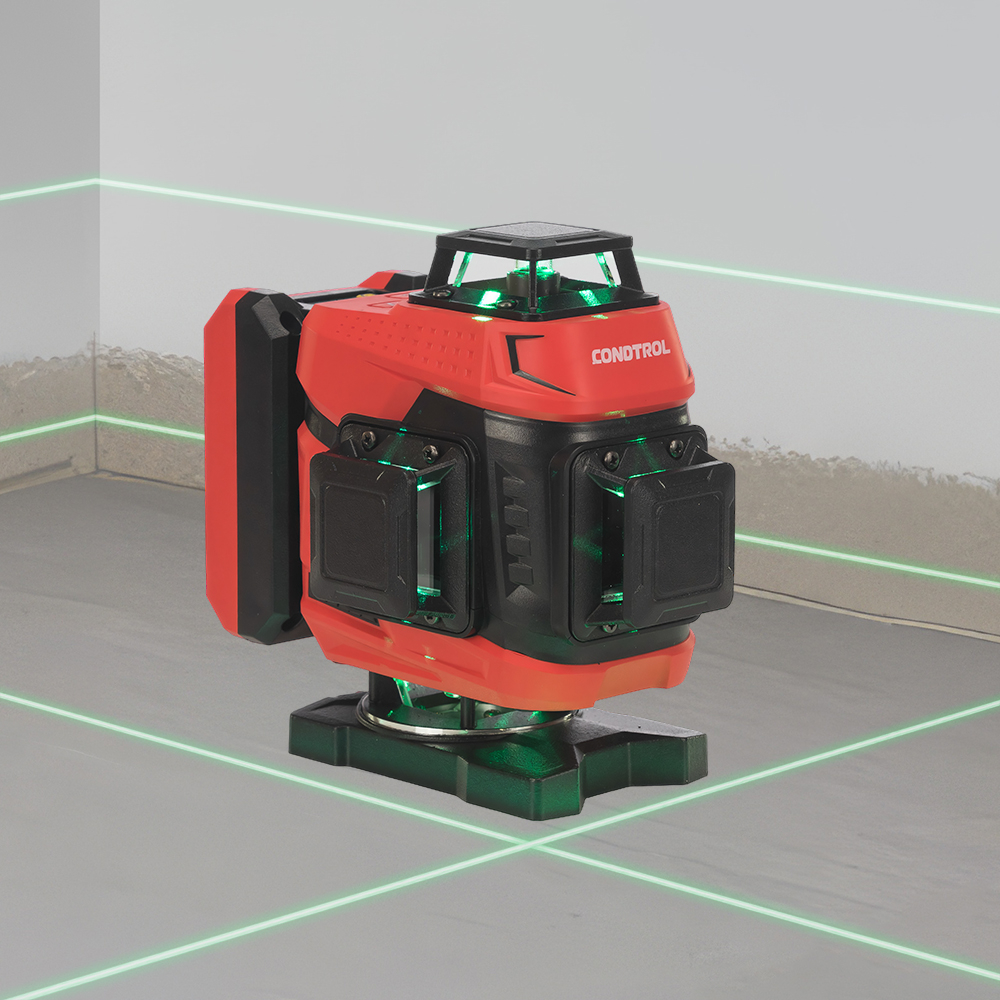

- 2 horizontal 360° green line and 2 vertical 360° green lines.
- Lines operate independently.
- 2 operating modes: automatic and manual.
- Can be used with a receiver (optional).

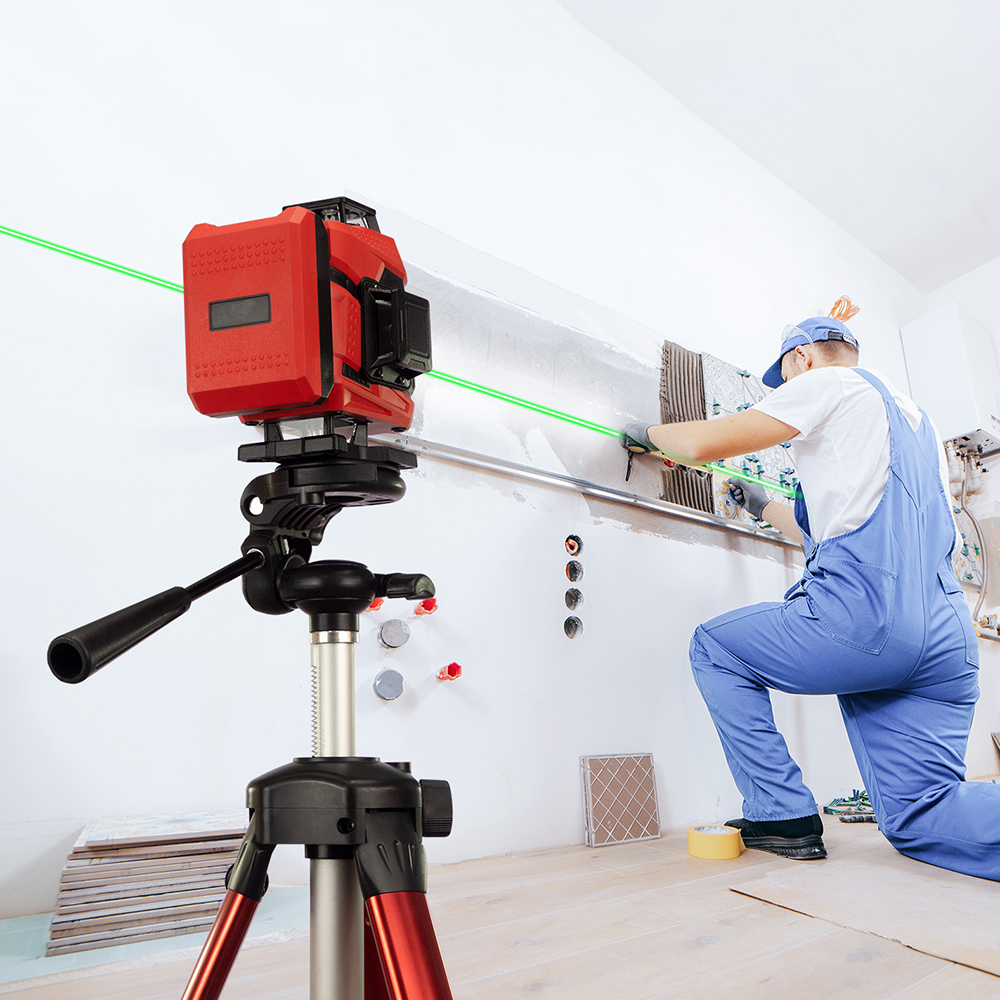

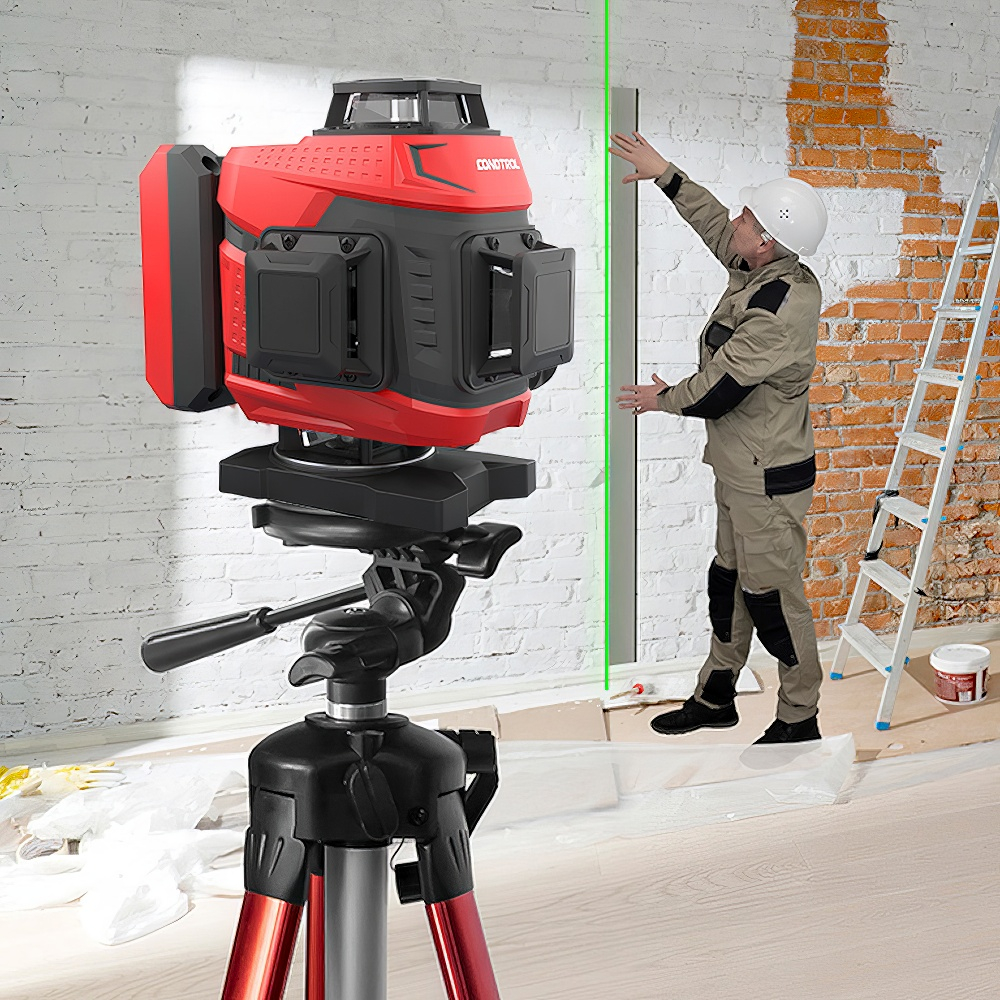

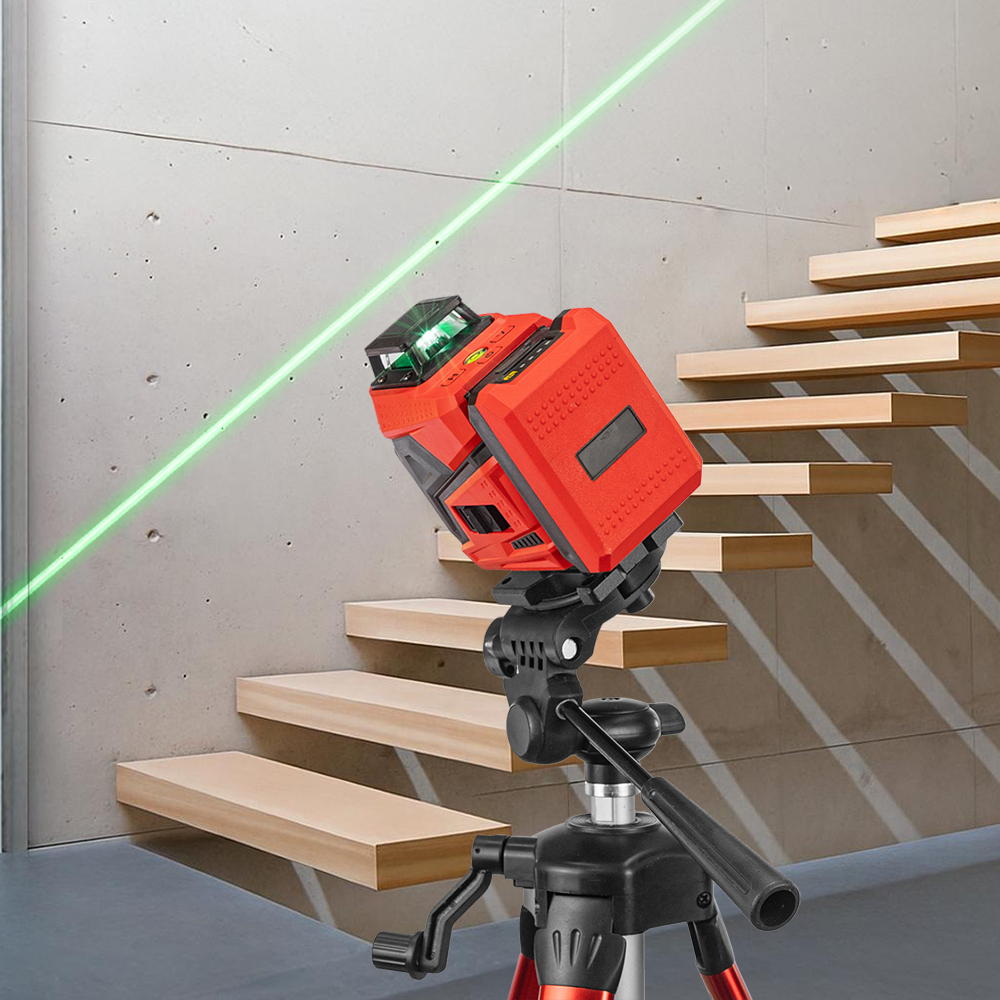

- 1/4" thread and 5/8" thread for use with a tripod.

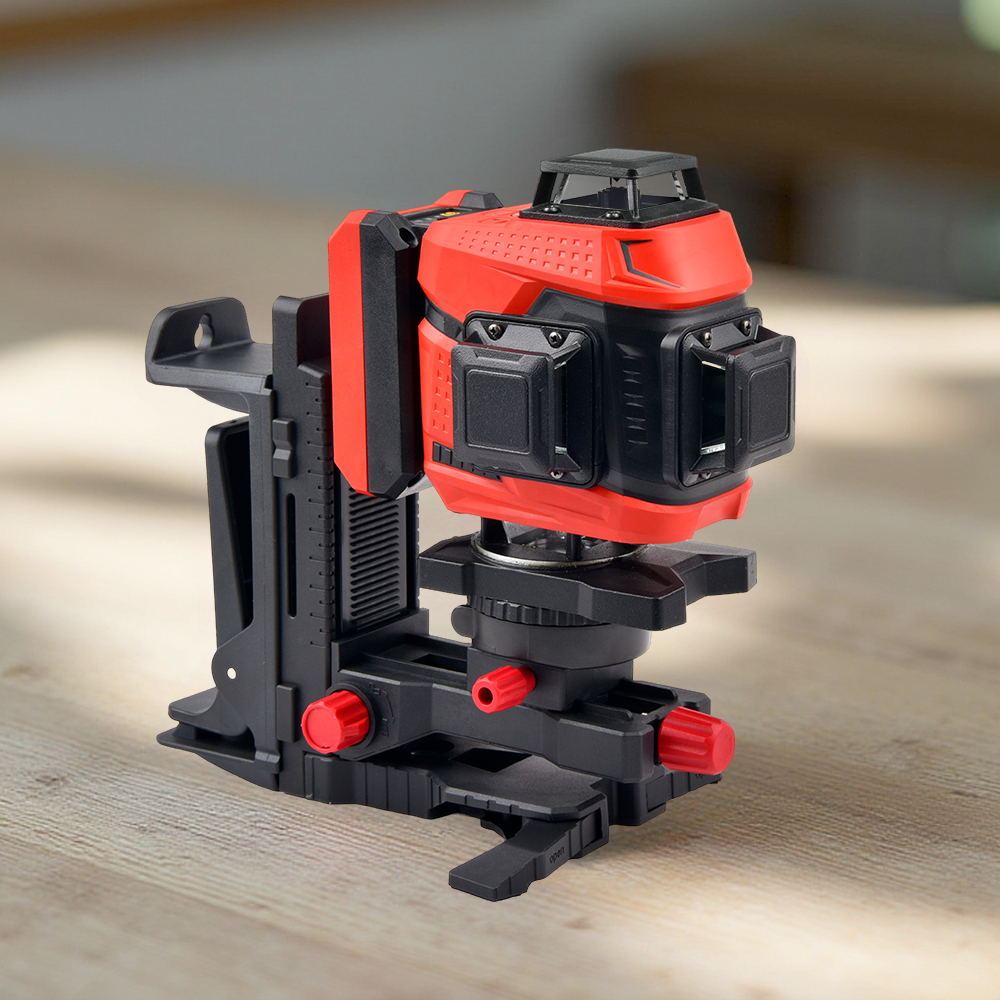

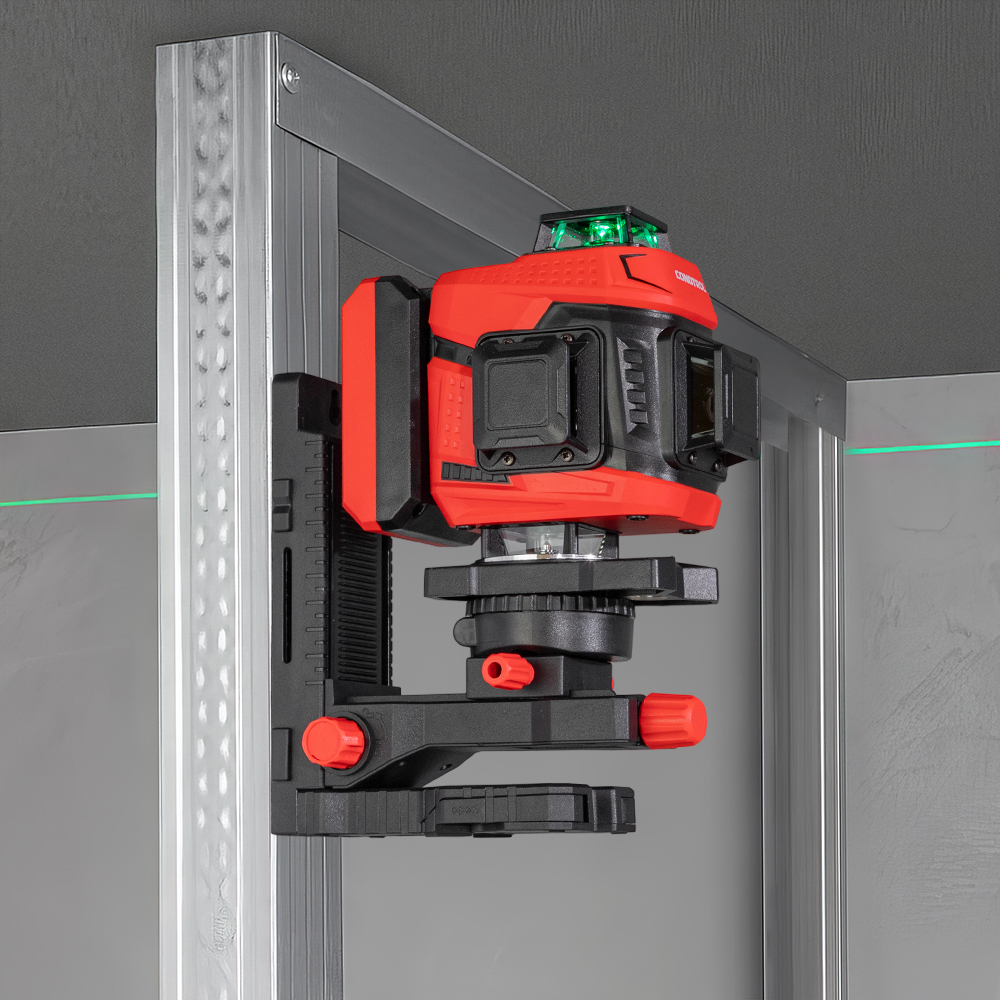

- Can be mounted by lifting platform, wall mount and clamp mount.

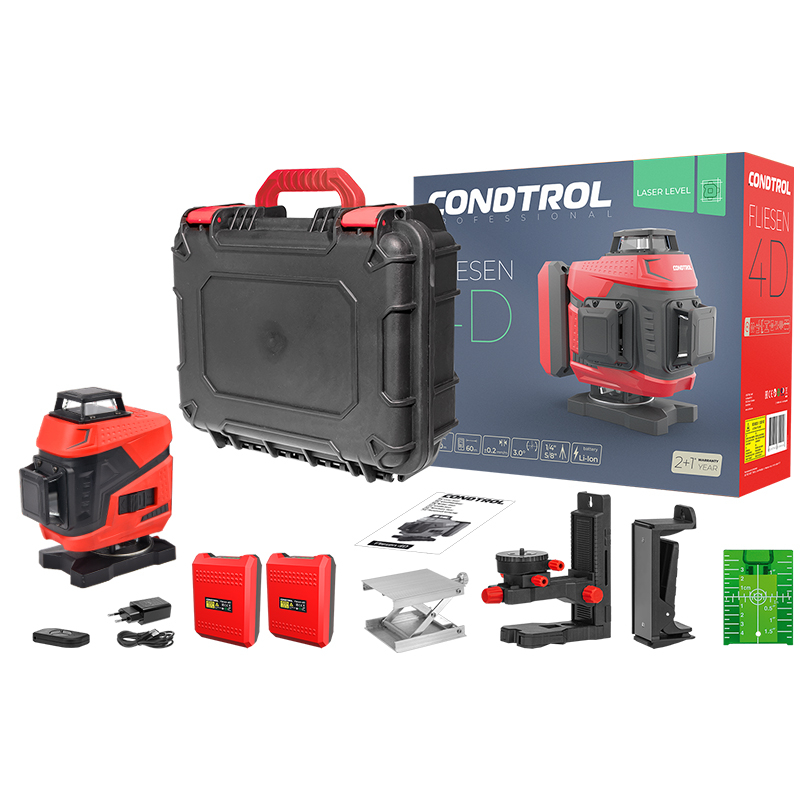

Delivered with
aluminium lifting platform, Wall Mount Pro wall mount, clamp mount, magnetic target, storage case, 2 Li-ion batteries, charging cable, user manual.
Technical characteristics of FLIESEN 4D
- New
- Yes
- Laser Colour Feature
- Green
- Range
- 30 m
- Range with Receiver Feature
- 60 m
- Accuracy Feature
- ± 0,3 mm/m
- Automatic leveling range
- ± 3°
- Laser Feature
- 515 nm, inf.1 mW, class II
- Autonomy Feature
- 5 h
- Ingress Protection Feature
- IP54
- Distance between the lower horizontal line and the ground
- 18 mm

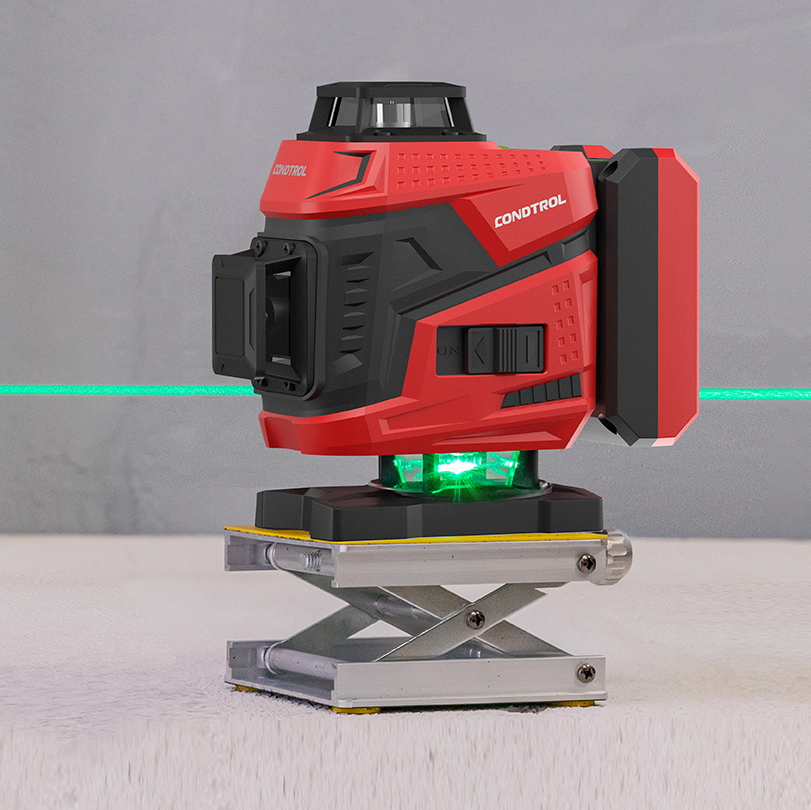

- Distance between the lower horizontal line and the ground with the platform
- adjustable from 30 to 90 mm
- Power Supply Feature
- 3,7 V 4000 mAh Li-ion battery
- Operating Temperature Feature
- -10 °C… +40 °C
- Storage Temperature Feature
- -15 °C… +50 °C
- Dimensions Feature
- Weight Feature
- Ref. Feature
- C1002002
- EAN Code Feature
- 4620752699046
